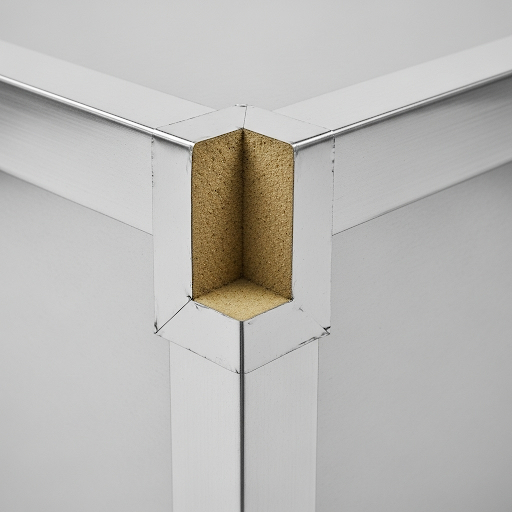

The pre-insulated ductwork is a novelty in the heating, ventilating and conditioning (HVAC) systems. It comprises duct panels consisting of polyisocyanurate (PIR) or phenolic foam core, outer and inner foil covers made of aluminium. This is compared to the traditional type of metal ductwork all of which is constructed using galvanised steel and with external insulation added by wrapping or applied to the duct after all construction. Therefore, the pre-insulated ductwork combines insulation with an air-carrying shell to create a single, cheaper, and time-efficient system. Pre-insulated ductwork in modern heating and cooling systems is made using lightweight panels, therefore making it easy to build.  This system is produced either off-site or on-site through cutting, grooving and bonding of the panels to create rigid air ducts.

The Top Ways How Pre-Insulated Ductwork Reduces Energy Costs and Heat Loss

Pre-insulated ductwork is a better option in heating, ventilation, and air conditioning (HVAC) systems because it significantly reduces utility costs by preventing conditioned air from escaping. These integrated ducts are the best method of saving energy and reducing heat loss.

1. Good Thermal Resistance Minimises Heat Transfer: Pre-insulated ductwork is characterised by an internal highly-performing insulation core that is constructed of such substances as phenolic or polyisocyanurate (PIR) foam. During winter, it does not permit warm air to escape through the ducts, and during summer and it prevents hot air from entering the cool air in neighbouring unconditioned spaces. The distribution of the temperature minimises the total amount of heat lost or gained. As a result, the air handler will need to run a few fewer hours or require less power to maintain the desired heating temperatures in the home.
2. Factory-Sealed Joints Reduce Air Loss: One of the top energy losses is air leakage that conventional ducts that are not adequately sealed can reach as high as 30% of the conditioned air. Pre-insulated systems have precisely engineered joints and connections, which the factory can seal. Such a construction leads to much lower air leakage rates compared to traditional sheet metal ducts, which are enclosed in insulation. The treated air is held within the system, where it is needed; less energy is wasted on heating or cooling air that is never brought to the rooms where it is intended to go. This is translated to reduced operation costs.
3. Reduced Load on HVAC Equipment: Ducting systems are particularly built in a manner that is more effective than the normal ceiling or wall panels in retaining the heat and preventing the cool air from leaking. The removal of the defective part of the air conditioner, along with the explanation of the equipment’s reduced usage and lower efficiency, makes this equipment more energy-consuming. This way, the consumption of power or fuel is reduced. At the same time, less exposure to stress prolongs the life of the expensive air conditioning systems and ultimately decreases repair and maintenance costs.
4. Preventing Condensation and Water Damage: On a hot summer day, when the cold air passes through the ducts, which have no insulation, it is normally visible that the moisture is condensed on the outside of the duct in a humid climate. The condensation may be harmful to neighbouring construction materials, hence resulting in the development of mould. The duct’s insulating layer ensures the level of temperature of the surface to be greater than that of the dew point, therefore, acting as a vapour barrier. Tackling moisture issues not only maximises system performance but also helps maintain air quality without the need for water damage repair or mould removal.
5. Uniform and Continuous Insulation Coverage: Pre-insulated ducts offer a continuous thermal envelope, whereas inconsistencies in the application of insulation can occur in the spots of application of insulation, exposing gaps or compressions at seams and supports, in field-installed insulation. So, one approach is to make insulation an integral part of the duct panel so that it does not have any weak parts where heat can easily escape or enter. This stable coverage is shown to result in the maximum material R-value over the entire run, ensuring the best long-term thermal performance and dependable annual savings.
6. Superior Acoustic Performance: Pre-insulated ductwork has better acoustic performance because its core structure provides intrinsic sound-damping and vibration-suppressive effects. This rigid material greatly inhibits noise and duct rumble caused by airflow and equipment vibration compared to conventional rigid metal ducts. Because the noise mitigation has been incorporated into the duct wall itself, there is no need for individual, possibly fibrous liners. This guarantees hygienic airflow and provides cleaner, all-in-one noise control technology, even at the point of installation.
7. Enhanced Durability and Low Maintenance: The integrated design also contributes largely to the longevity and durability of these systems, as it is a potent vapour barrier. Protective foil facing and closed-cell foam core provide effective deterrence against condensation, mould, and internal corrosion (rust) compared to traditional galvanised sheet metal ductwork, especially in coolers or humid areas. The pre-insulated system has a reduced structural and thermal lifespan in these typical types of deterioration, which helps to reduce the long-term maintenance and lifecycle expenses for the building owner.
8. Space and Structural Savings: Pre-insulated ductwork is a very viable space-efficient and structurally efficient option for construction work. Since insulation is built in, the duct run can be installed against building elements, eliminating the several inches of clearance required for manual lagging installation, which occupies up to 200 mm (8 inches) of precious space in narrow ceiling plenums. Moreover, it is lighter than traditional insulated metal insulations, being as much as 75 per cent lighter, which means less load on the building structure and can translate into reduced structural support needs.

Final Words

To sum up, insulated ducting is the factor that leads to energy saving in all HVAC systems. The unit, therefore, has to work less that translates to lower energy consumption and a decrease in environmental impacts. Being lightweight and easy to build are the advantages of the installation, while the pre-insulated duct system serves as the air distribution channel, ready for use with the highest performance. Pre-insulated ducts are used to maintain uniform air temperature, bypassing the need to use high HVAC settings and resulting in reduced operation and peak demand.
